Forsätter nöta OSPF-labbar från GNS3 Vault. :)

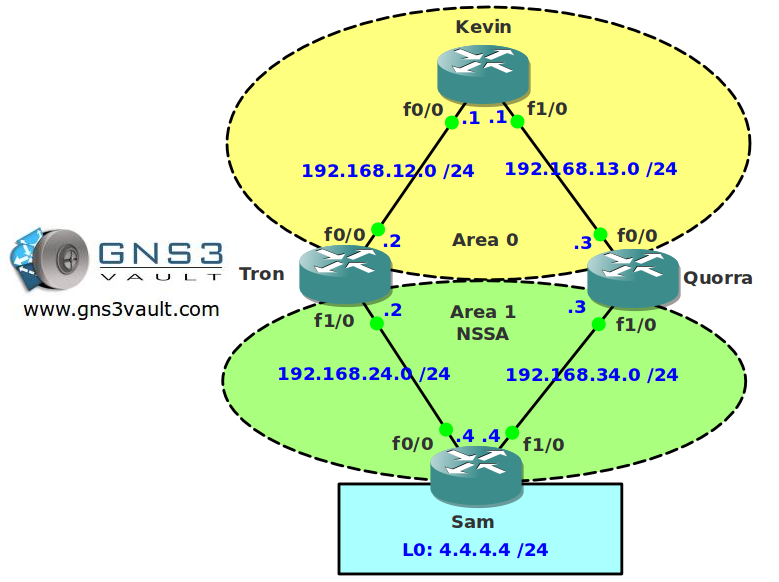

GOAL:
- All IP addresses have been preconfigured for you.
- Configure OSPF Area 0.
- Configure OSPF Area 1 as NSSA.
- Redistribute the loopback0 interface on router Sam into OSPF Area 1.
- Ensure router Tron is the router performing the translation from LSA Type 7 to Type 5 into area 0
Konfig:
Skippar all grundkonfig då det är väldigt basic. Använde redistribute connected för att få in 4.4.4.4/24-nätet in i OSPF. Kontrollerar vi OSPF-databasen kan vi ses att det just nu är Quorra som utför Type 7->5 translations.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Kevin#sh ip ospf database external
OSPF Router with ID (192.168.13.1) (Process ID 1)
Type-5 AS External Link States
Routing Bit Set on this LSA
LS age: 53
Options: (No TOS-capability, DC)
LS Type: AS External Link
Link State ID: 4.4.4.0 (External Network Number )
**Advertising Router: 192.168.34.3**
LS Seq Number: 80000001
Checksum: 0x6E08
Length: 36
Network Mask: /24
Metric Type: 2 (Larger than any link state path)
TOS: 0
Metric: 20
Forward Address: 192.168.34.4
External Route Tag: 0
Hur kommer då detta sig? Om vi kontrollerar OSPF-databasen för både Quorra & Tron ser vi följande:
Quorra
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Quorra#sh ip ospf database nssa-external
OSPF Router with ID (192.168.34.3) (Process ID 1)
Type-7 AS External Link States (Area 1)
Routing Bit Set on this LSA
LS age: 1079
**Options: (No TOS-capability, Type 7/5 translation, DC)**
LS Type: AS External Link
Link State ID: 4.4.4.0 (External Network Number )
**Advertising Router: 4.4.4.4**
LS Seq Number: 80000001
Checksum: 0x6E7C
Length: 36
Network Mask: /24
Metric Type: 2 (Larger than any link state path)
TOS: 0
Metric: 20
**Forward Address: 192.168.34.4**
External Route Tag: 0
Tron
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Tron#sh ip ospf database nssa-external
OSPF Router with ID (192.168.24.2) (Process ID 1)
Type-7 AS External Link States (Area 1)
LS age: 1120
**Options: (No TOS-capability, Type 7/5 translation, DC)**
LS Type: AS External Link
Link State ID: 4.4.4.0 (External Network Number )
**Advertising Router: 4.4.4.4**
LS Seq Number: 80000001
Checksum: 0x6E7C
Length: 36
Network Mask: /24
Metric Type: 2 (Larger than any link state path)
TOS: 0
Metric: 20
**Forward Address: 192.168.34.4**
External Route Tag: 0
Så båda routrarna tar emot 4.4.4.0/24-nätet med information att de ska utföra Type 7 -> 5 translation. Kontrollerar vi istället databasen för Type-5 ser vi att endast Quorra som annonserar detta. Quorra
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quorra#sh ip ospf database external
**OSPF Router with ID (192.168.34.3) (Process ID 1)**
Type-5 AS External Link States
LS age: 1252
Options: (No TOS-capability, DC)
LS Type: AS External Link
Link State ID: 4.4.4.0 (External Network Number )
**Advertising Router: 192.168.34.3**
LS Seq Number: 80000001
Checksum: 0x6E08
Length: 36
Network Mask: /24
Metric Type: 2 (Larger than any link state path)
TOS: 0
Metric: 20
**Forward Address: 192.168.34.4**
External Route Tag: 0
Tron
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Tron#sh ip ospf database external
**OSPF Router with ID (192.168.24.2) (Process ID 1)**
Type-5 AS External Link States
Routing Bit Set on this LSA
LS age: 1316
Options: (No TOS-capability, DC)
LS Type: AS External Link
Link State ID: 4.4.4.0 (External Network Number )
**Advertising Router: 192.168.34.3**
LS Seq Number: 80000001
Checksum: 0x6E08
Length: 36
Network Mask: /24
Metric Type: 2 (Larger than any link state path)
TOS: 0
Metric: 20
**Forward Address: 192.168.34.4**
External Route Tag: 0
Varför? Lite efterforskning visade att Ciscos IOS ej har något stöd för att definiera translator direkt i OSPF-processen utan använder sig istället av högst Router-ID. När Tron tar emot LSA Type 5-annonseringen från Quorra som har ett högre RID ”flushade” den bort sin egen Type-5 LSA och började använda Quorras istället. Vill vi ändra Translator måste vi således ändra Router-ID.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Tron(config)#int lo0
Tron(config-if)#ip add 10.10.10.10 255.255.255.255
Tron(config-if)#router ospf 1
Tron(config-router)#router-id 10.10.10.10
Reload or use "clear ip ospf process" command, for this to take effect
Tron(config-router)#do clear ip ospf process
Reset ALL OSPF processes? \[no\]: yes
Quorra(config)#int lo0
Quorra(config-if)#ip add 9.9.9.9 255.255.255.255
Quorra(config-if)#router ospf 1
Quorra(config-router)#router-id 9.9.9.9
Reload or use "clear ip ospf process" command, for this to take effect
Quorra(config-router)#do clear ip ospf process
Reset ALL OSPF processes? \[no\]: yes
Kollar vi återigen i Kevin nu kan vi se att Tron har tagit över som Type 7-5 Translator pga ett högre RID. :)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Kevin#sh ip ospf database external
OSPF Router with ID (192.168.13.1) (Process ID 1)
Type-5 AS External Link States
Routing Bit Set on this LSA
LS age: 11
Options: (No TOS-capability, DC)
LS Type: AS External Link
Link State ID: 4.4.4.0 (External Network Number )
**Advertising Router: 10.10.10.10**
LS Seq Number: 80000001
Checksum: 0x4E8E
Length: 36
Network Mask: /24
Metric Type: 2 (Larger than any link state path)
TOS: 0
Metric: 20
**Forward Address: 192.168.34.4**
External Route Tag: 0
Sweet!
