Here’s another lab taking on how to set up reliable policy-based routing. The basic configuration is identical to a previous lab I did about policy-routing, so if you’re interested in the basics I suggest you also take a look there for an easier intro. This one ends up using some pretty nifty functions within route-maps to set up a secondary next-hop tied in with IP SLA-tracking & CDP that I haven’t seen earlier.

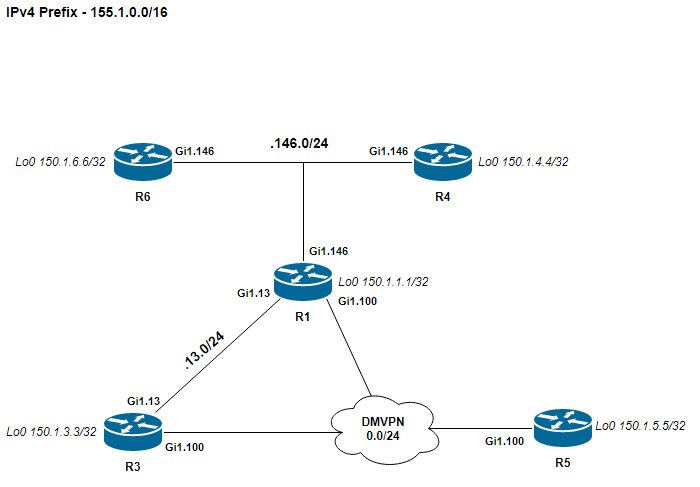

Lab requirements: Basic routing:
- Configure a default-route on R3 towards R1s local interface (Gi1.13)
- Configure a default-route on R4 & R6 towards R1s local interface (Gi1.146)
- Configure a default-route on R5 towards R1s DMVPN-interface (Tu0)
- Configure static routes thru the DMVPN-cloud on R3 for R5’s Lo0, and vice versa on R5 for R3’s lo0
Policy-routing:
- Configure policy-routing on R1 so that traffic sourced from R4s G1.146 is routed to R3 over Gi1.13
- Configure policy-routing on R1 so that traffic sourced from R6s Gi1.146 is routed to R5 over DMVPN
Reliability:
- Configure CDP between R1 & R5 over DMVPN-cloud
- Configure IP SLA on R1 that confirms connection to R3 every 5 seconds
- Modify R1’s policy-routing so that if R1 loses ICMP reachability to R3, traffic from R4 is rerouted to R5 over the DMVPN-cloud
- Modify R1’s policy-routing so that if R1 loses R5 as CDP-neighbor, traffic from R6 is rerouted to R3 over the ethernet link (Gi1.13)
Let’s start with the easy stuff, the basic routing is very… basic, no explanation needed.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
! Basic-1 R3
ip route 0.0.0.0 0.0.0.0 Gi1.13 155.1.13.1
! Basic-2
! R4
ip route 0.0.0.0 0.0.0.0 Gi1.146 155.1.146.1
! R6
ip route 0.0.0.0 0.0.0.0 Gi1.146 155.1.146.1
! Basic-3 R5
ip route 0.0.0.0 0.0.0.0 Tu0 155.1.0.1
! Basic-4
! R3
ip route 150.1.5.5 255.255.255.255 Tu0 155.1.0.5
! R5
ip route 150.1.3.3 255.255.255.255 Tu0 155.1.0.3
As in the previous lab, R1 has no routes so we won’t be able to pass much traffic yet. Let’s take a look at setting up the policy-routing prerequisites so we can start testing basic functionality. First we’ll need an access-list to match the source-address of R4 & R6, then we manually set next-hop with a route-map and attach it to our incoming interface.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
! Policy-routing R1
ip access-list extended R4
permit ip host 155.1.146.4 any
ip access-list extended R6
permit ip host 155.1.146.6 any
route-map RPR permit 10
match ip address R4
set ip next-hop 155.1.13.3
route-map RPR permit 20
match ip address R6
set ip next-hop 155.1.0.5
interface Gi1.146
ip policy route-map RPR
We should now have basic connectivity finally, packets from R4 should be routed to R3 first whatever the destination:.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
R4#ping 150.1.5.5
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 150.1.5.5, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 6/6/6 ms
R4#traceroute 150.1.5.5
Type escape sequence to abort.
Tracing the route to 150.1.5.5
VRF info: (vrf in name/id, vrf out name/id)
1 155.1.146.1 5 msec 4 msec 4 msec
**2 155.1.13.3 5 msec 5 msec 5 msec**
3 155.1.0.5 5 msec \* 5 msec
Packets from R6 should be routed to R5 first whatever the destination:
R6#ping 150.1.3.3
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 150.1.3.3, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 6/12/27 ms
R6#traceroute 150.1.3.3
Type escape sequence to abort.
Tracing the route to 150.1.3.3
VRF info: (vrf in name/id, vrf out name/id)
1 155.1.146.1 5 msec 4 msec 4 msec
**2 155.1.0.5 5 msec 5 msec 5 msec**
3 155.1.0.3 5 msec \* 5 msec
Everything is looking fine so far! Now to the tricky part with setting up reliability, cdp is easy though. We just enable it on both of our tunnel interfaces:
1
2
3
4
! Reliability-1 R1 & R5
cdp run
interface Tu0
cdp enable
Next requirement was to set up IP SLA that tracks the connection between R1 & R3’s Gi1.13 every 5 seconds. We’ll do this in R1 as it will be the router doing the policy-routing later.
1
2
3
4
5
6
7
8
! Reliability-2 R1
ip sla 100
icmp-echo 155.1.13.3 source-interface Gi1.13
frequency 5
ip sla schedule start-time now life forever
track 1 ip sla 100 state
Let’s verify that everything’s OK this far:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
R1#sh ip sla statistics 100
IPSLAs Latest Operation Statistics
IPSLA operation id: 100
Latest RTT: 4 milliseconds
Latest operation start time: 17:00:09 UTC Wed Apr 11 2018
Latest operation return code: OK
Number of successes: 63
Number of failures: 0
Operation time to live: Forever
R1#sh track
Track 1
IP SLA 100 state
State is Up
3 changes, last change 00:16:29
Latest operation return code: OK
Latest RTT (millisecs) 3
Tracked by:
Route Map 0
R5#sh cdp neighbors detail
-------------------------
**Device ID: R1**
Entry address(es):
**IP address: 155.1.0.1**
Platform: cisco CSR1000V, Capabilities: Router IGMP
**Interface: Tunnel0, Port ID (outgoing port): Tunnel0**
Holdtime : 138 sec
Version :
Cisco IOS Software, CSR1000V Software (X86\_64\_LINUX\_IOSD-UNIVERSALK9-M), Version 15.5(3)S6, RELEASE SOFTWARE (fc3)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2017 by Cisco Systems, Inc.
Compiled Mon 24-Jul-17 20:01 by mcpre
advertisement version: 2
Management address(es):
IP address: 155.1.0.1
Next step on how to use tracking with policy-routing had me stuck for quite a while, scrolling thru the Cisco Docs I finally found a page that had some examples of what we’re trying to do at: Configuration Guides -> IP Routing: Protocol-Independent Configuration Guide – > PBR Support for Multiple Tracking Options First requirement was to use our IP SLA 100 / Track 1 that’s currently verifying connection is up between R1 & R3. Our route-map currently looks like this for reference:
1
2
3
4
5
6
route-map RPR permit 10
match ip address R4
set ip next-hop 155.1.13.3
route-map RPR permit 20
match ip address R6
set ip next-hop 155.1.0.5
We’ll modify the first entry by removing the static next-hop for R4 and replace it with the command “set ip next-hop verify-availability [next-hop-address sequence track object]“. We also have to add something as a fallback next-hop if the tracker goes down, here the “set ip default” command looks like what we want to use. You can find more info here: Configuration Guides -> IP Routing: Protocol-Independent Configuration Guide – > Policy-Based Routing Default Next-Hop Routes “set ip default next-hop ip-address [ip-address]”- Specifies the next hop for routing packets if there is no explicit route for this destination. Our final route-map for policy-routing R4 will look like this:
1
2
3
4
route-map RPR permit 10
match ip address R4
set ip-next verify availability 155.1.13.3 1 track 1
set ip default next-hop 155.1.0.5
For R6 I had much bigger problems however. Here we were supposed to use CDP for tracking but I couldn’t manage to find any specific information about it more than that “set ip-next verify availability” has CDP-support. A quick google-search showed that it’s really basic however, we only use the actual command “set ip-next verify availability” and IOS will automatically do CDP-lookups before setting the chosen next-hop, in this case we still need the static set ip next-hop however. The final result will look something like this:
1
2
3
4
5
route-map RPR permit 20
match ip address R6
set ip next-hop 155.1.0.5
set ip next-hop verify-availability
set ip default next-hop 155.1.13.3
Let’s verify again:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
R1#sh route-map
route-map RPR, permit, sequence 10
Match clauses:
ip address (access-lists): **R4**
Set clauses:
ip next-hop verify-availability 155.1.13.3 1 track 1 **\[up\]**
ip default next-hop 155.1.0.5
**Policy routing matches: 6 packets, 276 bytes**
route-map RPR, permit, sequence 20
Match clauses:
ip address (access-lists): **R6**
Set clauses:
ip next-hop 155.1.0.5
ip next-hop verify-availability
ip default next-hop 155.1.13.3
**Policy routing matches: 18 packets, 828 bytes**
A traceroute from R4 should always take the route via R3 as long as there’s reachability between R1 & R3:
1
2
3
4
5
6
7
R4#traceroute 150.1.5.5
Type escape sequence to abort.
Tracing the route to 150.1.5.5
VRF info: (vrf in name/id, vrf out name/id)
1 155.1.146.1 8 msec 5 msec 5 msec
**2 155.1.13.3 5 msec 5 msec 5 msec**
3 155.1.0.5 5 msec \* 5 msec
Let’s see what happens when we take down the connection between R1 & R3:
1
2
3
4
5
6
7
8
9
10
11
12
R1#debug ip policy
Policy routing debugging is on
R3(config)#int gi1.13
R3(config-subif)#shut
PBR Nexthop: Unregister tracking for 155.1.13.3, handle: 7F74CD6A6768
**PBR Nexthop Callback invoked: 7F74F117B6C0, (155.1.13.3) tableid 0, status: 0, type: SET NEXTHOP TRACKINGmap: RPR, sequence: 10**
PBR Control Plane Notification: 155.1.0.5 PBR\_CP\_SET\_DEFAULT\_NEXTHOP
**Policy NextHop Inquiry: RPR seq: 10, type: SET DEFAULT NEXTHOP Nexthop: 155.1.0.5SW\_OBJ\_TYPE: 1E, SW\_HANDLE: 7F74F1108FE8**
PBR CP Notification sent: Type:SET DEFAULT NEXTHOP, 155.1.0.5SW\_OBJ\_TYPE: 1E, SW\_HANDLE: 7F74F1108FE8
Let’s do another traceroute, the traffic should jump directly to R5 instead:
1
2
3
4
5
6
R4#traceroute 150.1.5.5
Type escape sequence to abort.
Tracing the route to 150.1.5.5
VRF info: (vrf in name/id, vrf out name/id)
1 155.1.146.1 4 msec 4 msec 4 msec
**2 155.1.0.5 4 msec \* 4 msec**
Sweet! Let’s try the same for R6, all traffic should always first be redirected to R5:
1
2
3
4
5
6
7
R6#traceroute 150.1.3.3
Type escape sequence to abort.
Tracing the route to 150.1.3.3
VRF info: (vrf in name/id, vrf out name/id)
1 155.1.146.1 5 msec 5 msec 4 msec
**2 155.1.0.5 5 msec 5 msec 5 msec**
3 155.1.0.3 5 msec \* 5 msec
Looking good so far. Lets disable CDP on R5s Tunnel0 interface and wait out the hold-timer (180 seconds), not a very fast switchover with default timers…
1
2
3
! R5
interface Tu0
no cdp enable
After a long wait R5 is no longer showed in cdp-table:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R1#sh cdp neighbors
Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge
S - Switch, H - Host, I - IGMP, r - Repeater, P - Phone,
D - Remote, C - CVTA, M - Two-port Mac Relay
Device ID Local Intrfce Holdtme Capability Platform Port ID
R10 Gig 1 172 R I CSR1000V Gig 1
R2 Gig 1 126 R I CSR1000V Gig 1
R3 Gig 1 131 R I CSR1000V Gig 1
R6 Gig 1 132 R I CSR1000V Gig 1
R7 Gig 1 166 R I CSR1000V Gig 1
R4 Gig 1 151 R I CSR1000V Gig 1
R8 Gig 1 150 R I CSR1000V Gig 1
R9 Gig 1 158 R I CSR1000V Gig 1
A traceroute should now go directly to R3 instead (don’t forget to open the interface we previously shutdown).
1
2
3
4
5
6
7
R6#traceroute 150.1.3.3
Type escape sequence to abort.
Tracing the route to 150.1.3.3
VRF info: (vrf in name/id, vrf out name/id)
1 155.1.146.1 6 msec 5 msec 3 msec
**2 155.1.0.5 5 msec 5 msec 5 msec**
3 155.1.0.3 5 msec \* 5 msec
Not what we were hoping for.. Traffic is for some reason still routed over to R5 even though we have no CDP-reachability. I tried troubleshooting this forever but finally found a notation that there’s apparently a bug in the CSR-1000V routers when it comes to verify-availability & CDP tracking(!!). The config looks OK though from other examples I could find so this is how it’s “supposed” to work at least.. Fun times. :)
